Thursday 26 April 2018

GD reinforcements

Some more GD infantry reinforcements to match the last lot: 6-man Command elements and 3-man LMG teams for Battlegroup. BF hard-plastic figs.


Tuesday 17 April 2018

Terrain Hacks - Hills

Since I get asked quite often how I do "X" terrain pieces, I'll start documenting how I do things. I'm pretty much always working on terrain: usually it's small bits and pieces, at other times serious terrain builds.

Building Hills

I have learned a lot over the years on terrain building from several sources, not least of which was Big Gav on the now defunct FOW Forum. You can find his hill building tutorial here. Though the blog is long dead, it has some very useful articles and images: Gav is found more often these days on the Gold Coast Gaming page on FB. Which may be defunct soon, too...

I was asked to build some hills for a local gamer, so I've documented the process. First off, using a plain sheet of 6mm MDF, I measure the bases for the hills and try to make them different shapes and sizes and then try to fit them to the limits of the available material. I cut the  MDF to shape, then trace the same outline on some high-density 35mm polystyrene, and cut that out to match the base.

When done, I use polystytrene glue (or cornice glue) to glue the poly piece to the MDF piece. You can also use something like acrylic silicon for this (aka "caulk"). Leave to dry overnight.

Then start shaping with whatever available: I use a combination of a serrated-edge steak knife, rotary sander and a multi-tool with wedge and sanding pad attachments. Power tools are you friend and they save a great deal of time and effort, but I have done hills just by hand before using the steak knife to saw through excess poly and then sand by hand.

Roughly shaped pieces on the left, those still to do on the right.

I remove the majority of polystyrene where I don't want it, slowly carving the hill to shape and usually leaving a crest line. I then sand the MDF to match the required slope, finishing the shaping of the hill.

All pieces sanded: you can see some of the crest lines quite easily.

I then cover the hill with a thin layer (about 1.5mm) of polystyrene glue all over for strength and leave that to dry. When done, I spread an overall layer of wood glue and then cover the hill in fine sand. When that dries, you have a pretty robust shell over the polystyrene that in my experience has proved extremely hard-wearing.

Painting is simple: I paint the sand with a slightly watered-down dark or medium brown, followed by a lighter brown and then a highlight colour. Here the colours used were German Camo Medium brown, Green Brown and Iraqi Sand...I get the first two mixed in cheaper PVA to match the Vallejo colour. The Iraqi Sand dry-brush is done with actual VMC Iraqi Sand as it covers really well which saves time and costs very little. About eight drops did all ten hills I was working on.

The request here was for the hills to be covered in static grass to match the old GW grass mat: I applied that with the WWS Pro Grass Micro Static Grass Applicator using a mix of 2mm spring static grass and diluted wood glue. The applicator is not cheap, but a very useful tool if you do a lot of terrain and make use of static grass.

Initial test grassing...need to hold them somewhere.

The grass is applied on two stages (since I need somewhere to hold onto the hills): first application, dry overnight, then complete the process. With that done, these hills were complete.

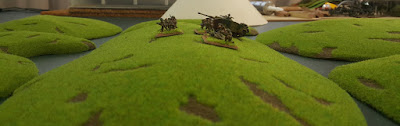

Lots of diluted wood glue and tons of grass later: hills.

I usually have a few FOW bases handy during initial shaping of the hills,
to check that the slopes are not too steep for bases.
In future posts I'll do other things with terrain. My approach to tables has changed a fair bit over the years, though the basics have remained the same. The wonderful Cigar Box Battle mats have allowed some attractive changes, to the point where I no longer bother with hills like the above. But that is for another post...


Wednesday 11 April 2018

WIP: DAK Panzers - Panzer III ausf G

Following on from the DAK Panzer IVs, progress so far on 3x Panzer III ausf G with some pretty poor WIP shots. But whatever; it does at least illustrate the process.

I've added the unique "road-wheels-attached-to-turret-sides-thing" Panzer Regiment 8. was fond of and sundry other bits of stowage. Also put cloth covers on the 5cm barrels which you see fairly often on early Panzer IIIs. Again had to fix the main gun mantlets: the sinkhole problem persists, PSC fixed it on the J/L/M/N box by molding separate gun and mantlet pieces. I left a few areas where I could add a PSC air-recognition flag later as I don't fancy hand-painting one again as on the Panzer IVs...

Basic paint colours on, pretty washed-out night-time pics here. Colours as before. I've done some bits (mostly road wheels and a couple of frontal drive sprockets and a return idler) in Dunkelgrau as if they'd not yet been re-painted. They look quite stark here but will tone down later. We'll see if it works.

 A *lot* of work later and details are all painted, decals applied and paint-chipping all done. I should have taken more WIP shots here.

Still the enamel pin-wash to do, matt varnish, add crewman and paint underside of tracks, etc. then done.

I plan to 3x Pz III ausf J (early) to after this, then I'll add J (late), ausf L and a platoon of Panzer IV F2/early Gs. That should complete my BG Afrika Korps forces, or at least the tanks, thogh I still need to source the Mk. IVs. Then some armoured cars. Maybe a Panzerjäger I and Marder III (7.62cm). More trucks? A couple of Tigers and Panzer III Ns for Tunisia? Also need half-track tows... and PaK36 and PaK38s. A couple of 8.8cm? And infantry of course! Damn it......
